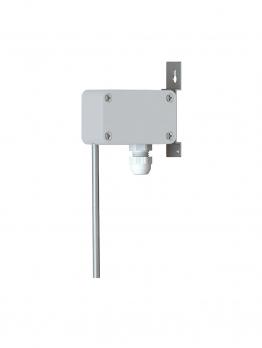

2-10k Model
The air temperature probe applies to measure air temperature indoors or outdoors. It's fastening by self-tapping screws. The 4-20 mA / 0-10 V / RS485 transducer can be embedded inside of the industrial head.
Technical specifications
| Type and Nominal Resistance | Pt50 (ex-USSR), Pt100 (ex-USSR) 10kNTC DS18B20 |
| Number of sensors | 1 |
| Accuracy | Classes А, В (Pt50, Pt100) 1% (10kNTC) 0,5°C (DS18B20) |
| RTD wire connection | 2, 3 wired |
| Industrial head | Z |
| Industrial head material | Polyamide (up to 100°С) |
| Sheath material | AISI 321 |
| Fastening | Self-tapping screws |
| Process temperature range,°С | -40...60 |
| Thermal inertia, sec | 60 |

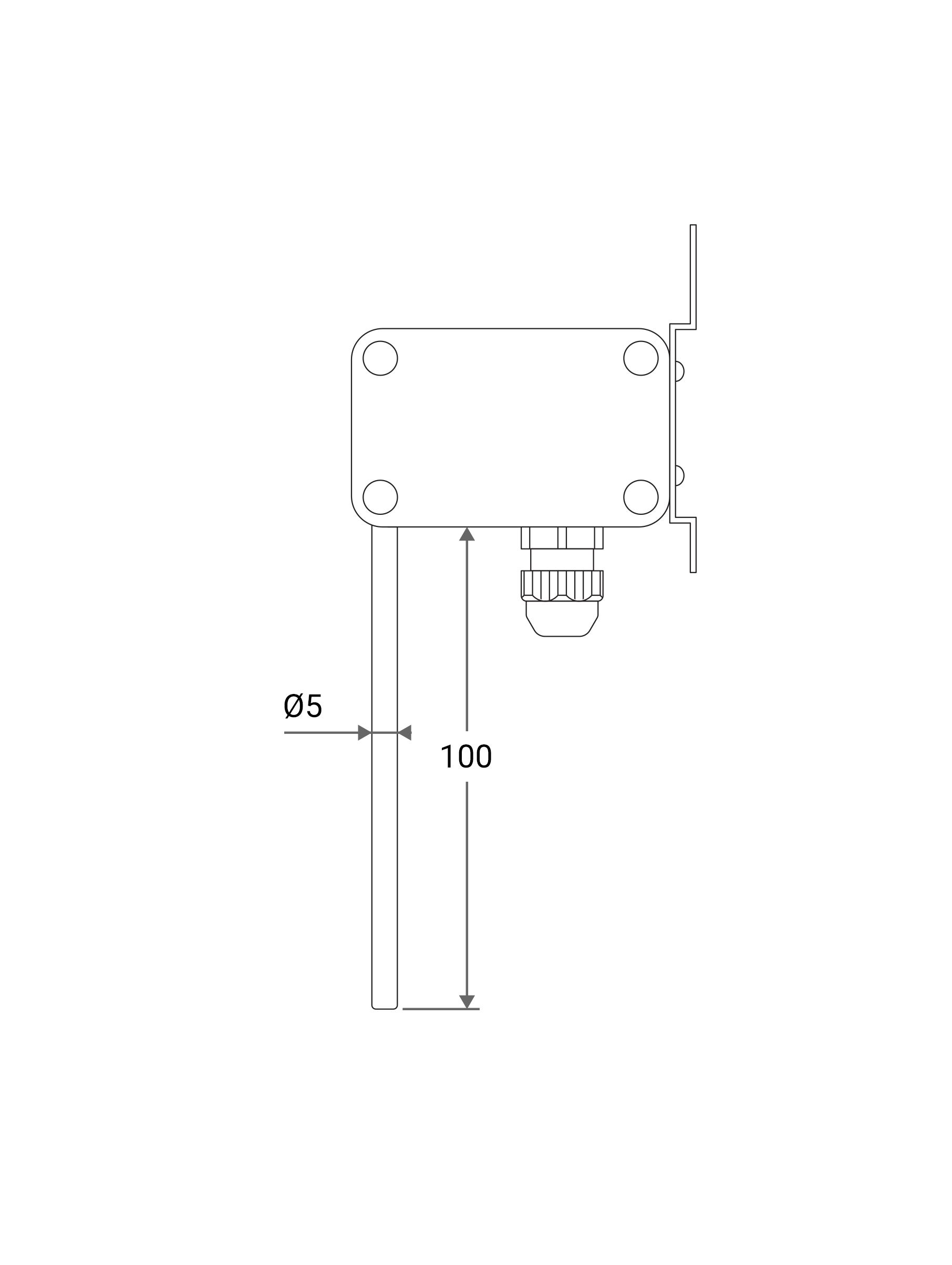

Dimensions
| Length of the immersion part, L, mm | 100 |
| Diameter of the immersion part, mm | Ø5 |
