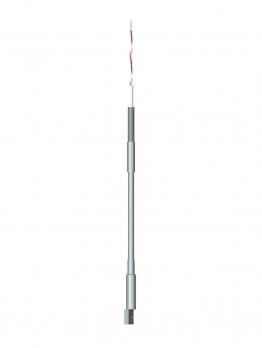

2-26 Model
It applies to measure temperature of solid items by putting it on a surface. The probe is made as a terminal. It allows to use variety of sensors. It's recommended to cover the probe by thermal insulation to avoid effect of environmental temperature. The 4-20 mA / RS485 transducer (T-bus/ModBus protocol) can be ordered separately in Z67 enclosure with a cable gland and connect it to the probe cable.
Technical specifications
| Type and Nominal Resistance | Pt100 (ex-USSR), Pt1000 Type K |
| Number of sensors | 1 |
| Accuracy | Classes A, В (RTD) 1, 2 (thermocouple) |
| RTD wire connection | 2, 3 wired |
| Junction type of thermocouples | Ungrounded |
| Sheath material | Nickel-plated brass |
| Process temperature range, °С | -50...250, -50...500 (Pt100, Pt1000) -40...800, -40...1000 (type K) |
| Thermal inertia, sec | 12 |

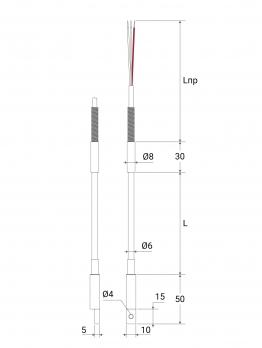

Dimensions
| Length of the immersion part, L, mm | 250, 320, 400, 500, 630, 800, 1000, 1250, 1500, 2000... up to 20 000 |
| Diameter of the immersion part, mm | Ø6 |
NOTE! The price of the probe consists the price of the probe itself and the price of the cable.
