2-8a Model
One of the variety of the 2-8 model. It applies to measure temperature of solid items by putting it on a surface. It mounts on the pipe using a metal clamp. It's recommended to install it on thermal paste to ensure better thermal conduction and to cover the probe by thermal insulation to avoid effect of environmental temperature. The 4-20 mA / RS485 transducer (T-bus/ModBus protocol) can be ordered separately in Z67 enclosure with a cable gland and connect it to the probe cable.
Technical specifications
| Type and Nominal Resistance | Cu50 (ex-USSR), Cu100 (ex-USSR) Pt100 (ex-USSR), Pt1000 10kNTC |
| Number of sensors | 1 |
| Accuracy | Class В (Cu50, Cu100) Classes А, В (Pt100, Pt1000) 1% (10kNTC) |
| RTD wire connection | 2, 3 wired |
| Sheath material | Aluminium alloy |
| Process temperature range, °С | -50...150 (Cu50, Cu100) -50...250 (Pt50, Pt100, Pt1000) -40...120, -20...200 (10kNTC) |
| Thermal inertia, sec | 14 |
Explosion-proof design
| Cable | RE |
| Explosion-proof labelling | 0ExiallCT6...T1 X (allowed zones: 0, 1, 2, 20, 21, 22) |

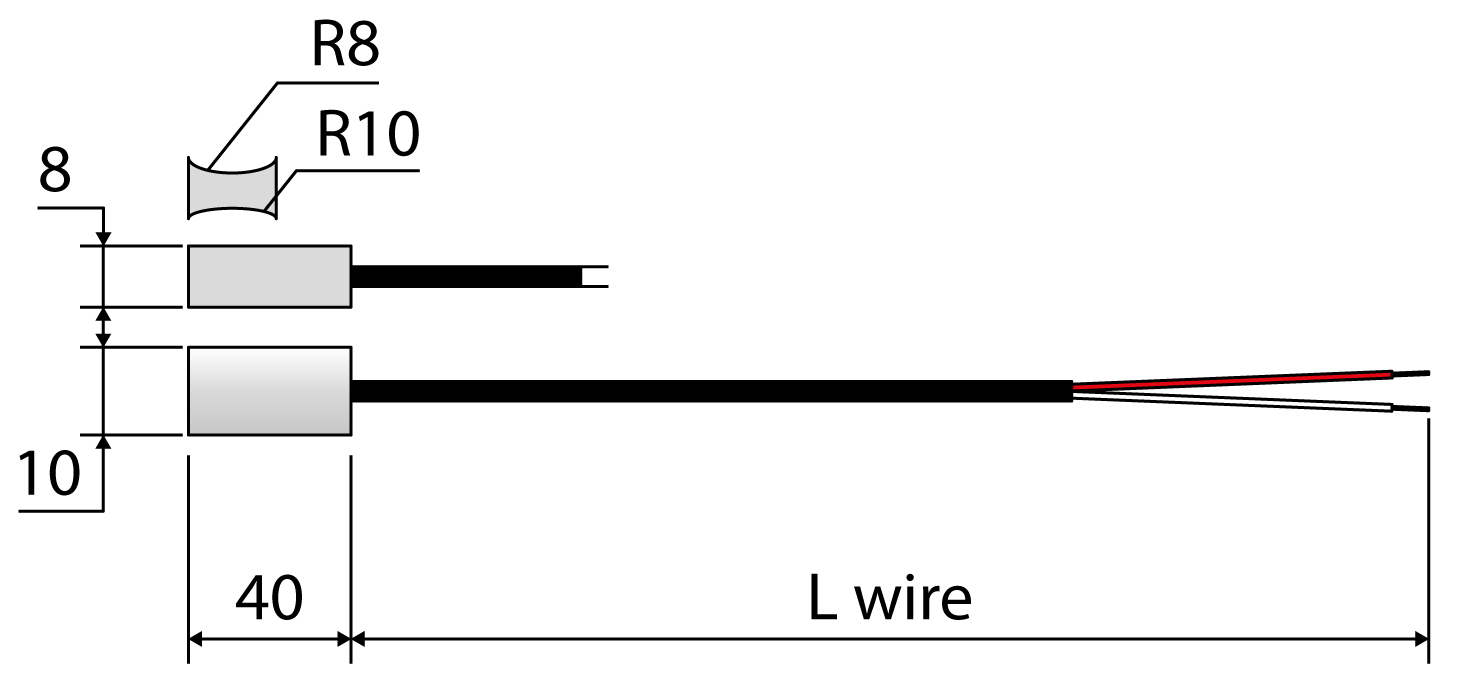

The probe (Cu50, Cu100, Pt100) has other dimensions of an aluminium body as shown in the figure below.
Nominal Resistence - Cu50, Cu100, Pt50, Pt100
NOTE! The price of the probe consists the price of the probe itself and the price of the cable.
