Connectors for Temperature Probes

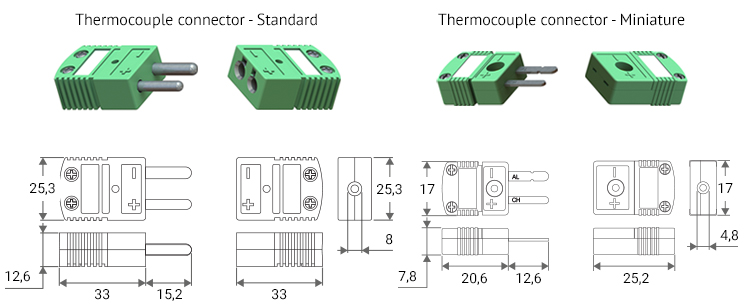

It's used to connect thermocouple and thermocompensating cables. Connector's contacts are made of corresponding thermocouple alloys, that avoid any additional error in indications while measuring.
Polarity of contacts ensures the correct connection, and collapsible design with built-in screw terminals ensures quick connection of wires.
There are both male and female connectors in a set.
Technical specifications
| Code | Type | Operating temperature, °C | Conductor's max diameter, mm | Cable's max diameter, mm |
| KZTC-Mini КХ | К | -20...220 | Ø0,6 | Ø4,8 |
| KZTC-Mini JХ | J | -20...220 | Ø0,6 | Ø4,8 |
| KZTC-Big KX | К | -20...220 | Ø0,6 | Ø8 |
| KZTC-Big JX | J | -20...220 | Ø0,6 | Ø8 |
| KZTC-Big NX | N | -20...220 | Ø0,6 | Ø8 |

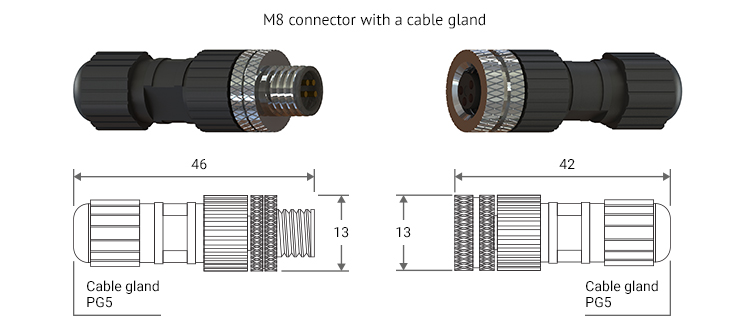

It's used to connect RTD and thermistor cables (ensures cable-to-cable connection). Connector's contacts are made of gold-plated brass, connector enclosure is made of PA6 polyamide and nichel-plated brass.
There is 5-pin M8 connector into having. There are both male and female connectors in a kit.
Technical specifications
| Type | RTD |
| Level of protection | IP67 |
| Operating temperature, °C | -25...90 |
| Max section, mm | Ø0,34 |
| Outside diameter of cable, mm | Ø2,0 - Ø4,7 |
