2-16 Model
2-16 temperature transducer uses 4-20 mA analogue interface for data transfer. The probe connects to 4-20 mA line by 2 or 3 wired scheme depending on a model. It's recommended to use Shielded Twisted Pair (STP) cable for lines. 4-20 mA connection executes using sealed thread M12 connector with inner terminal block (no soldering).
The transducer has two external temperature probes with non-sealed M5 threaded connector.
Technical specifications of transducer
| Number of channel | 2 |
| Available channel configuration | 2 external temperature probes |
| Output Signal | Analogue, 2 x 4-20 mA |
| Indication | OLED 0.96’ display |
| Connector | М12FA / M12FD |
| Operating Temperature, °С | -30…60 |
Technical specifications of external temperature probe
| Type and Nominal Resistance | Pt1000 |
| Process temperature range, °С | -196…100, -50…100, -50…250, -50…500 |
| Process connection size | М5 (IP52) |

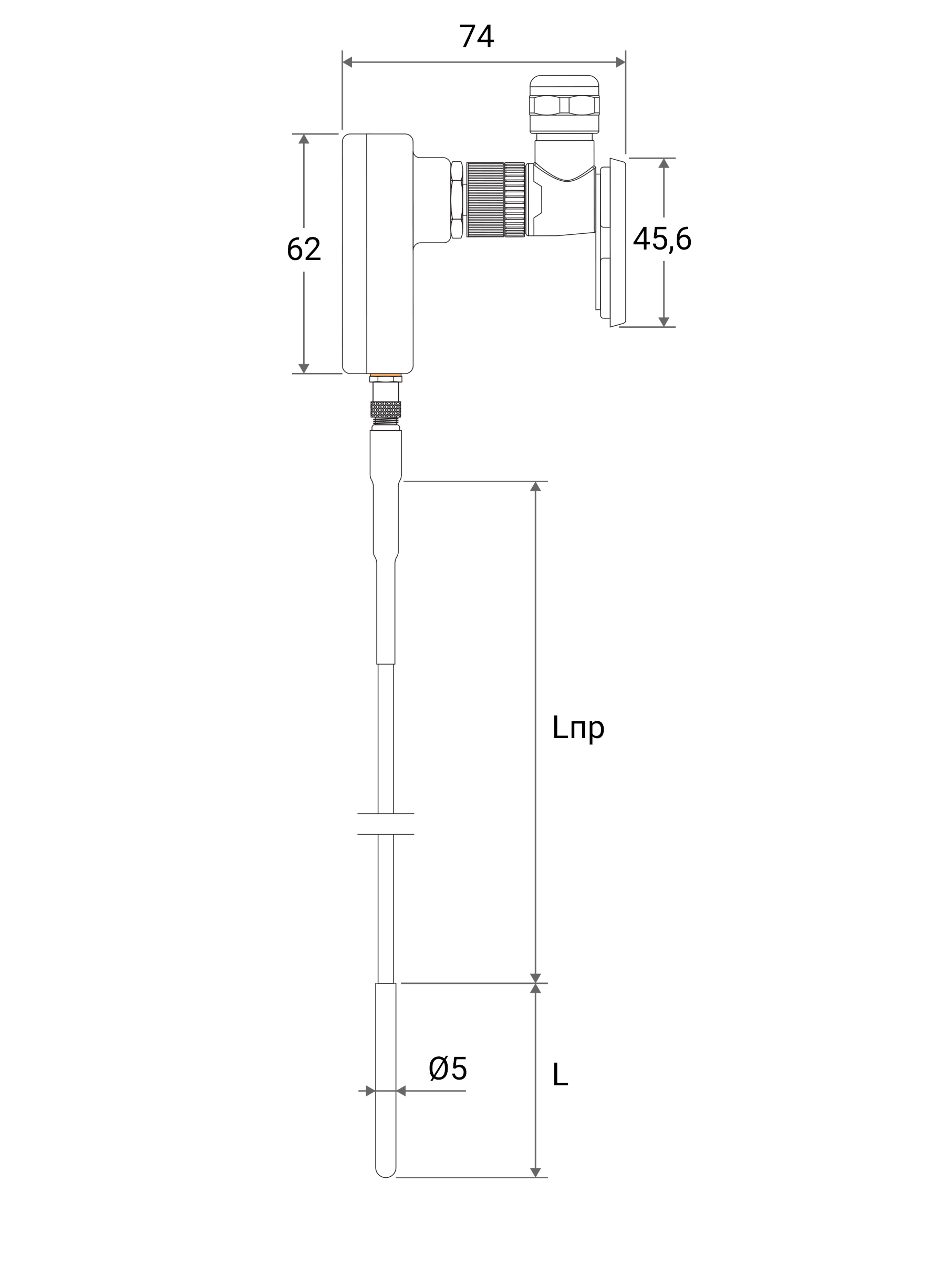

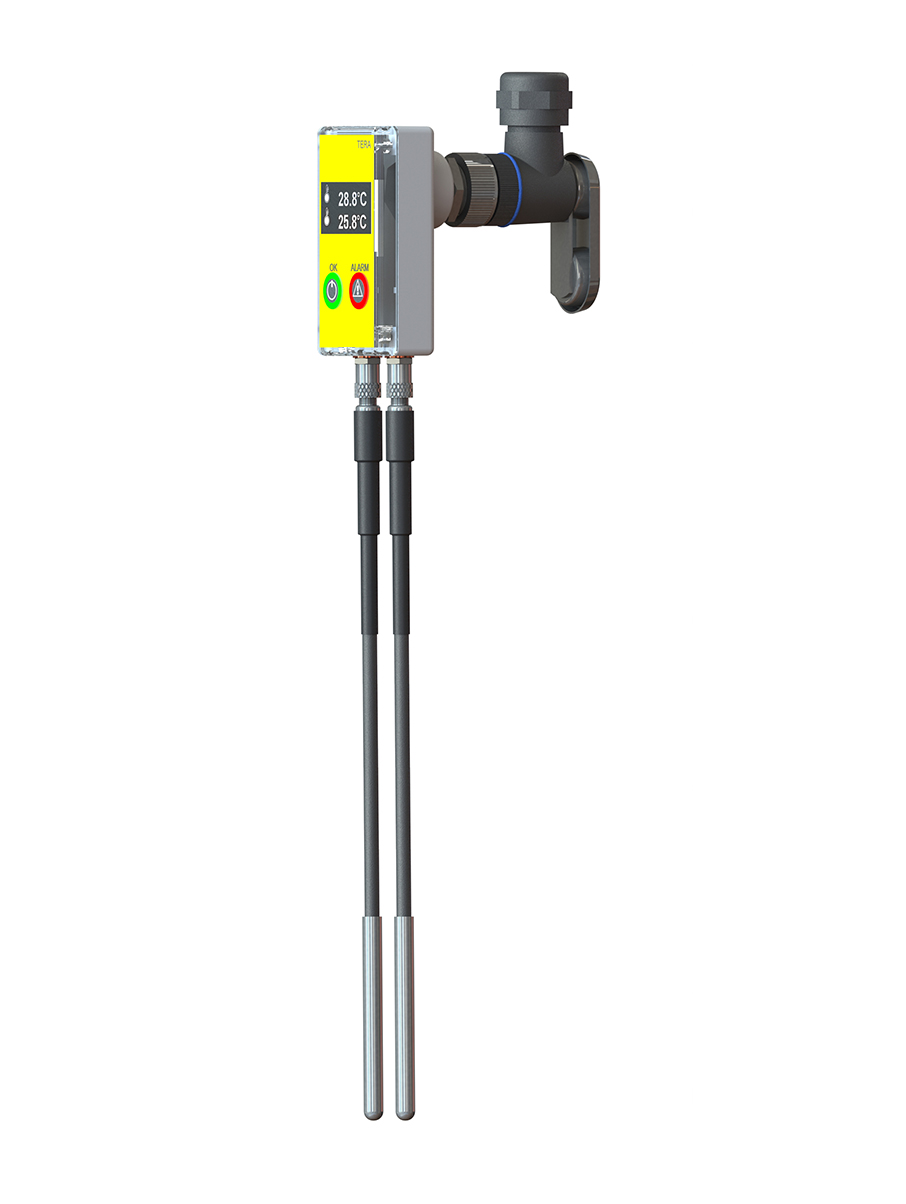

It uses high-contrast OLED display, that shows measurements receiving from all the channels. 2-16 model supplies in a set with a magnet and metal board with screws to mount.

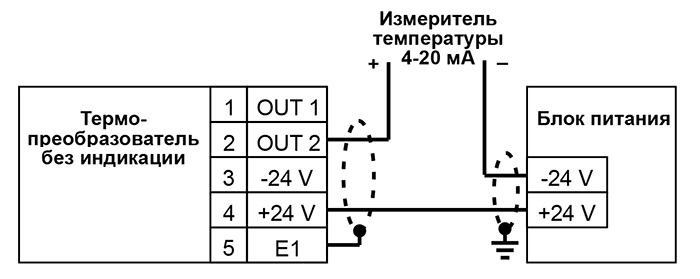

Wire connection
