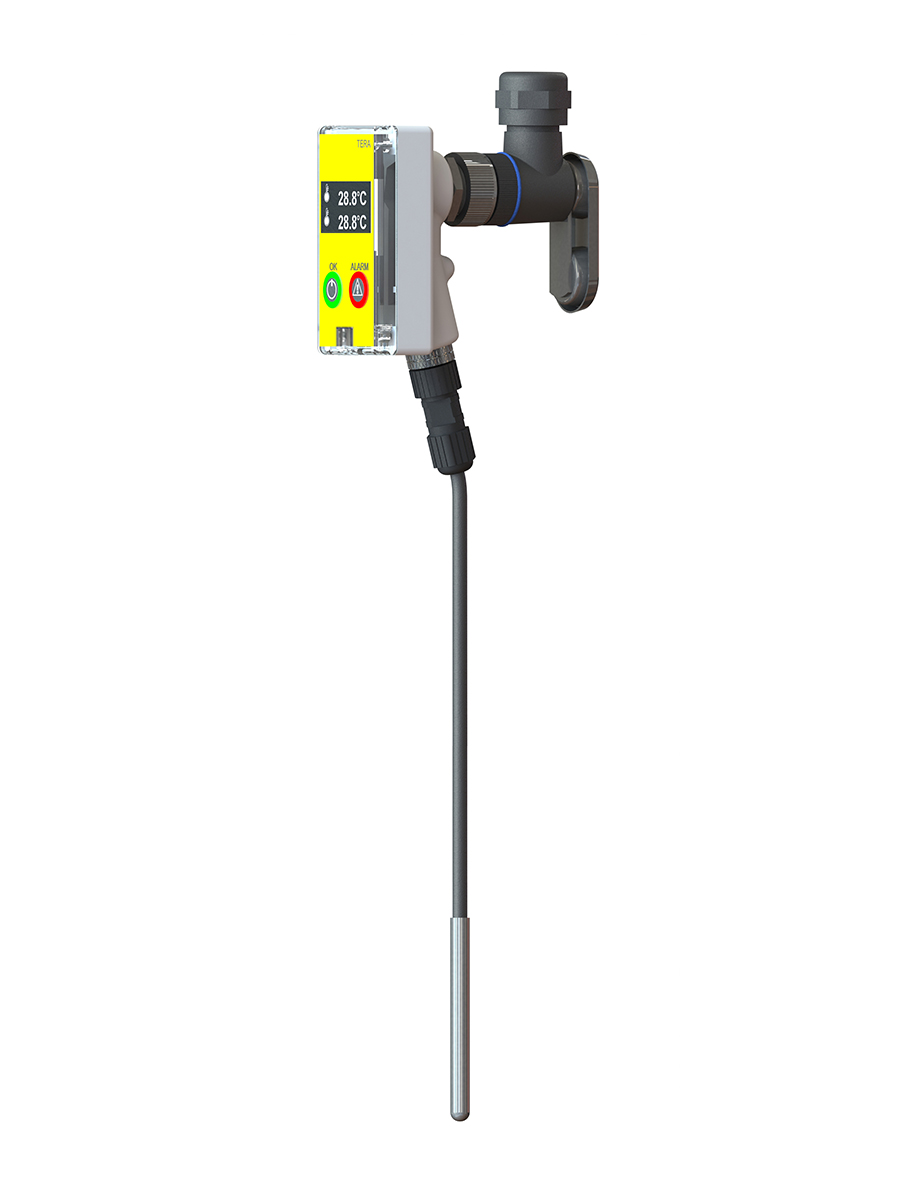

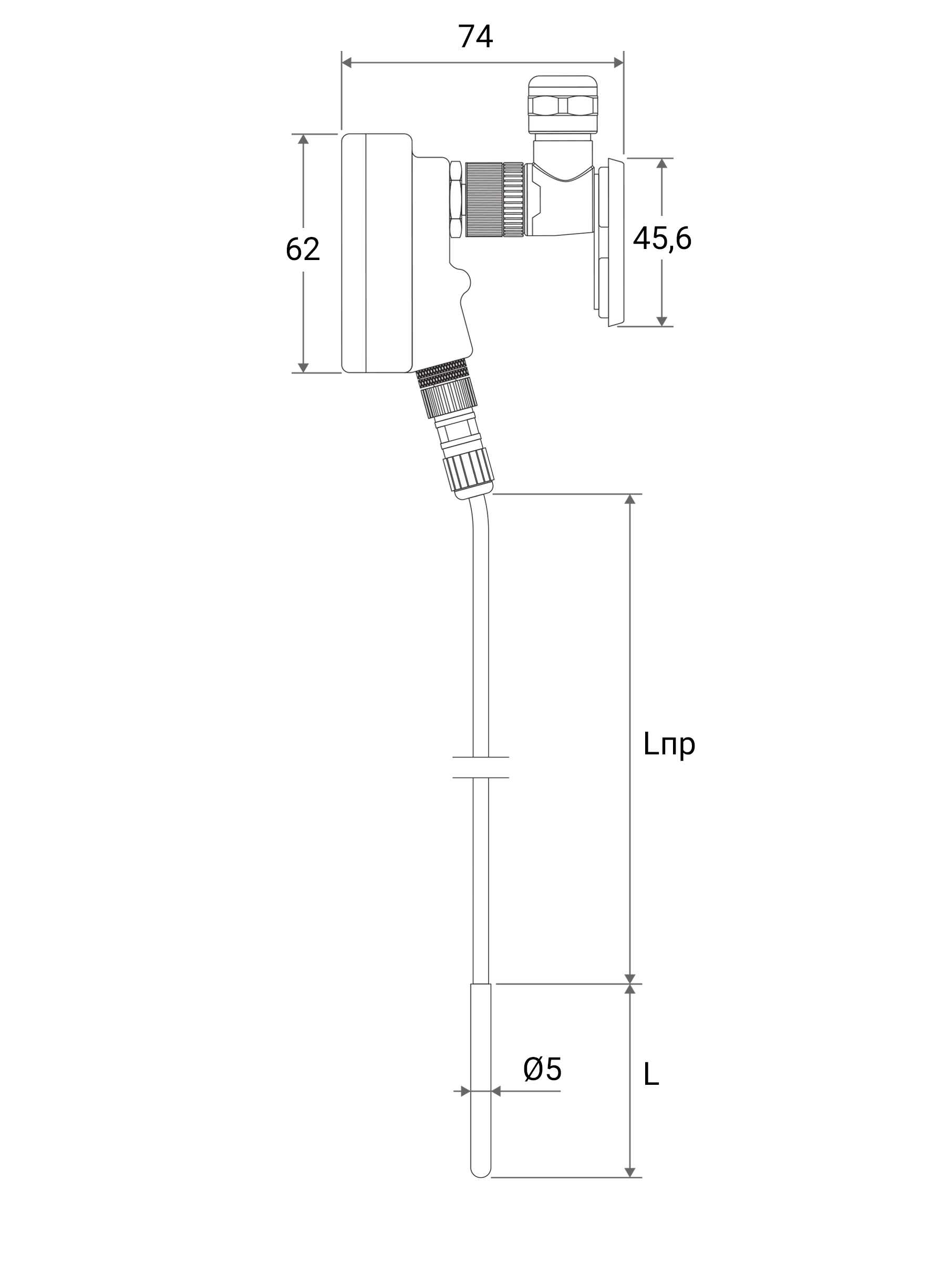

2-17 Model
2-17 temperature transducer uses RS485 interface for data transfer. That interface allows to connect consequently up to 30 probes on a single cable line. The transducer connects to the RS485 net by the 5 wired scheme.
It’s available to order 2-17 model with several sensors: besides of mounted temperature sensor, a customer may order one external probe Pt1000 or type K, that connects to the probe by sealed thread M8 connector.
2-17 model goes with magnet and mounting board with screws to mount it easily at the vertical surface.
Technical specifications
| Number of channel | 1, 2 |
| Available channel configuration | External temperature probe; Internal temperature sensor and external temperature probe |
| Output Signal | RS485, T-bus or Modbus RTU Protocols |
| Indication | OLED 0.96’ display |
| Connector | М12FA / M12FD |
| Operating Temperature, °С | -30…60 |
Technical specifications of the external temperature probe
| Type and Nominal Resistance | Pt1000 Type K |
| Process temperature range, °С | RTD: -196...100, -50…100, -50…250, -50…500 Thermocouple: 0…250, 0…500, 0…850, 0…1250 |
| Connector | М8 (IP67) |
Technical specifications of the internal temperature sensor
| Type | TMP116 |
| Process temperature range, °С | -30…60 |
It uses high-contrast OLED display, that shows measurements receiving from all the channels, displays the serial number and RS485 net settings.

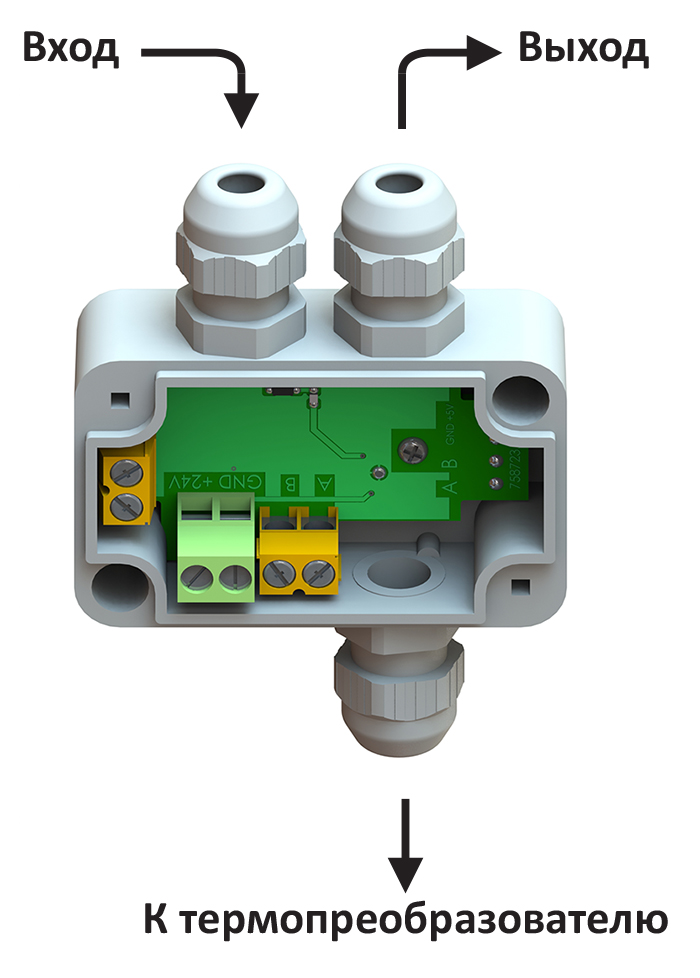

СР-06 Junction box
The transducer supplies along with CP-06 junction box with a power supply. The power supply and terminals are placed inside of CP-06 junction box to divide easily RS485 input and output cables.
Technical specifications of СР-06 junction box
| Input power supply | 12-24 V DC |
| Output power supply | 5 V DC |
