1-5r Model

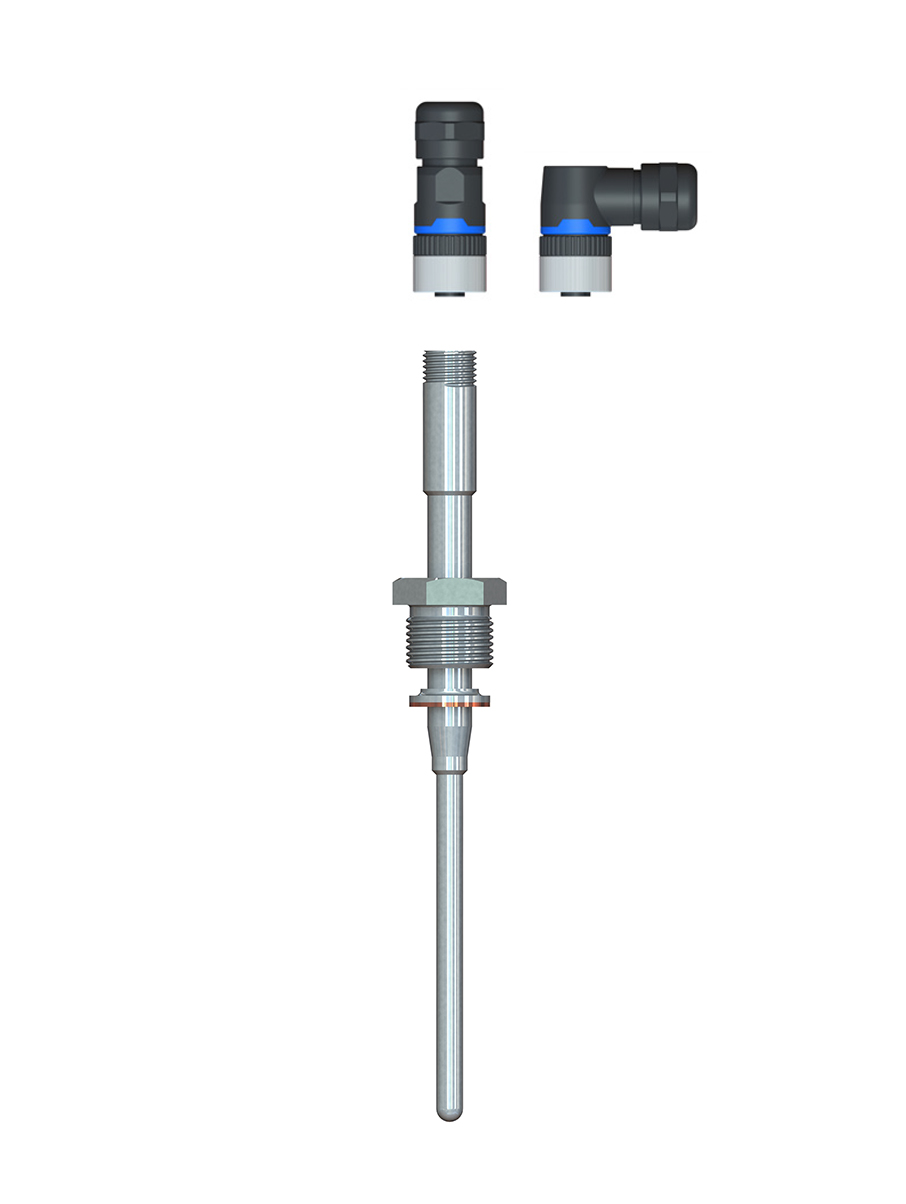

One of the varieties of 1-5 model with a free hex fitting and the M12 connector to connect a cable. The connector allows to connect or disconnect quickly a probe from measuring circuit. It applies to measure temperature of liquid, gas-like and air environments. It may go with a thermowell Gz-3, Gz-9 or Gz-10 and a threaded boss in a kit. The 4-20 mA or RS485 transducer (T-bus/ModBus protocol) can be ordered separately in Z67 enclosure with a cable gland and connect it to the probe cable.
Technical specifications
| Type and Nominal Resistance | Cu50 (ex-USSR), Cu100 (ex-USSR) Pt50 (ex-USSR), Pt100 (ex-USSR), Pt1000 10kNTC DS18B20 Type К Type L (ex- USSR) Type J |
| Number of sensors | 1, 2 |
| Accuracy | Class В (Cu50, Cu100) Classes АА, А, В (Pt50, Pt100, Pt1000) 1% (10kNTC) 0,5°C (DS18B20) 1, 2 (K, J) 2 (L) |
| RTD wire connection | 2, 3, 4 wired |
| Junction type of thermocouples | Grounded, ungrounded, dual ungrounded |
| Connector | M12 |
| Process connection size | M20x1,5 (by default) G1/2 (on order) |
| Sheath material | AISI 321 (by default) AISI 316 (on order) |
| Process temperature range, °С | -50...150 (Cu50, Cu100) -100...250, -50....250, -50...350, -50...500 (Pt50, Pt100, Pt1000) -40...120, -20...200 (10kNTC) -30...100 (DS18B20) -40...250, -40...400 (type K, J, L) |
| Operating temperature rangeof a connector, °С | -40...125 |
| Thermal inertia, sec | 15...25 (RTD) 10...30 (thermocouples) |
| Pressure, MPa | 6,3 |

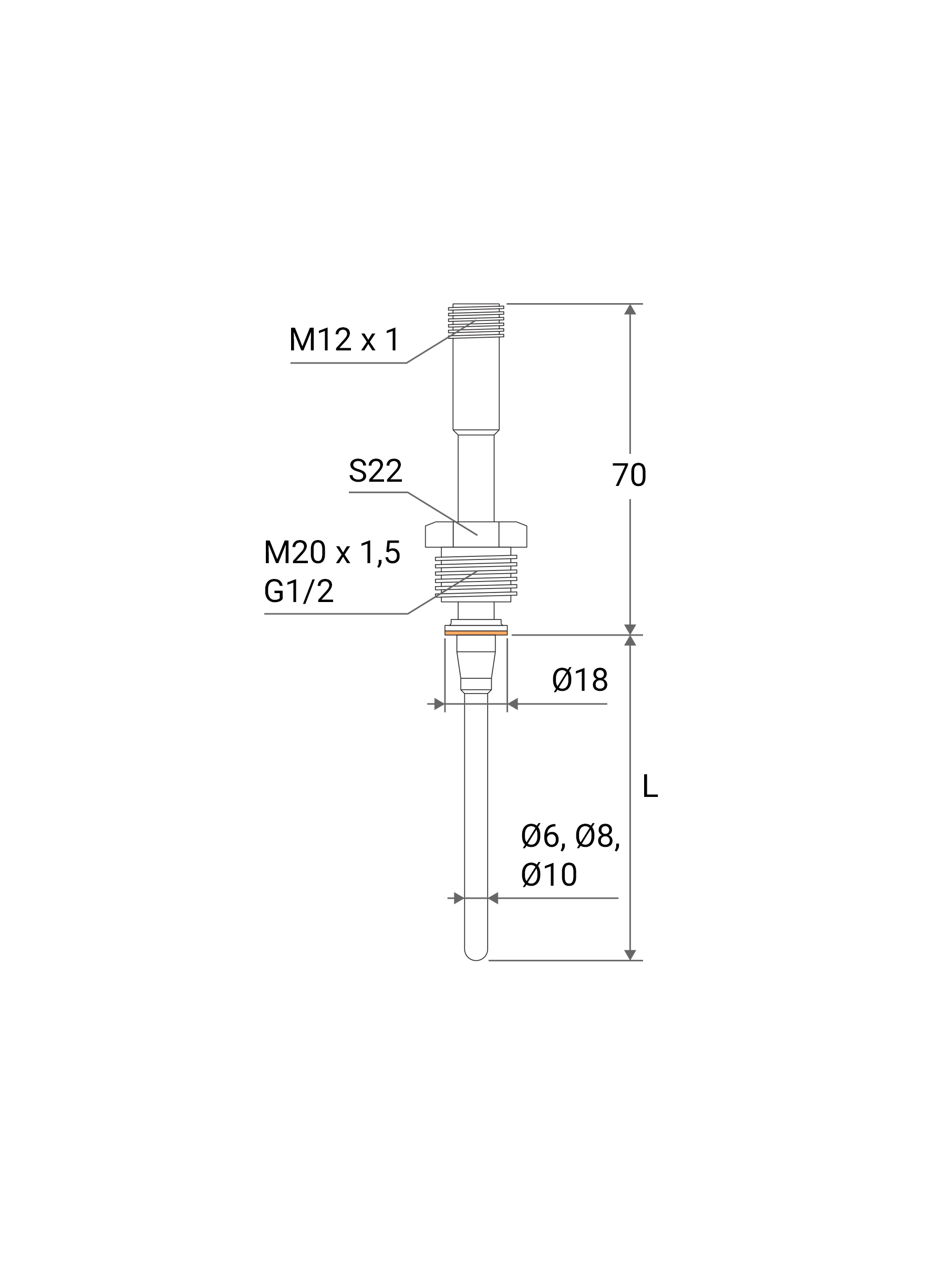

Dimensions
| Length of the immersion part, L, mm | 60, 80, 100, 120, 160, 200, 250, 320, 400, 500, 630, 800, 1000, 1250, 1600, 2000 |
| Diameter of the immersion part, mm | Ø6, Ø8, Ø10 |
* - distance between the bearing area and the industrial head
