3-16 Model
It applies in KuASY injection molding machines. The sheath is made as a frustum cone with transition of 6 mm to 5.5 mm.
Technical specifications
| Type and Nominal Resistance | Pt50 (ex-USSR), Pt100 (ex-USSR), Pt1000 Type К Type L (ex- USSR) Type J |
| Number of sensors | 1 |
| Accuracy | Classes А, В (Pt50, Pt100, Pt1000) 1, 2 (K, J) 2 (L) |
| RTD wire connection | 2, 3 wired |
| Junction type of thermocouples | Ungrounded |
| Sheath material | AISI 321 |
| Process temperature range, °С | -50...250, -50...350 (Pt50, Pt100, Pt1000) -40...250, -40...400 (type K, J, L) |
| Thermal inertia, sec | 15 |

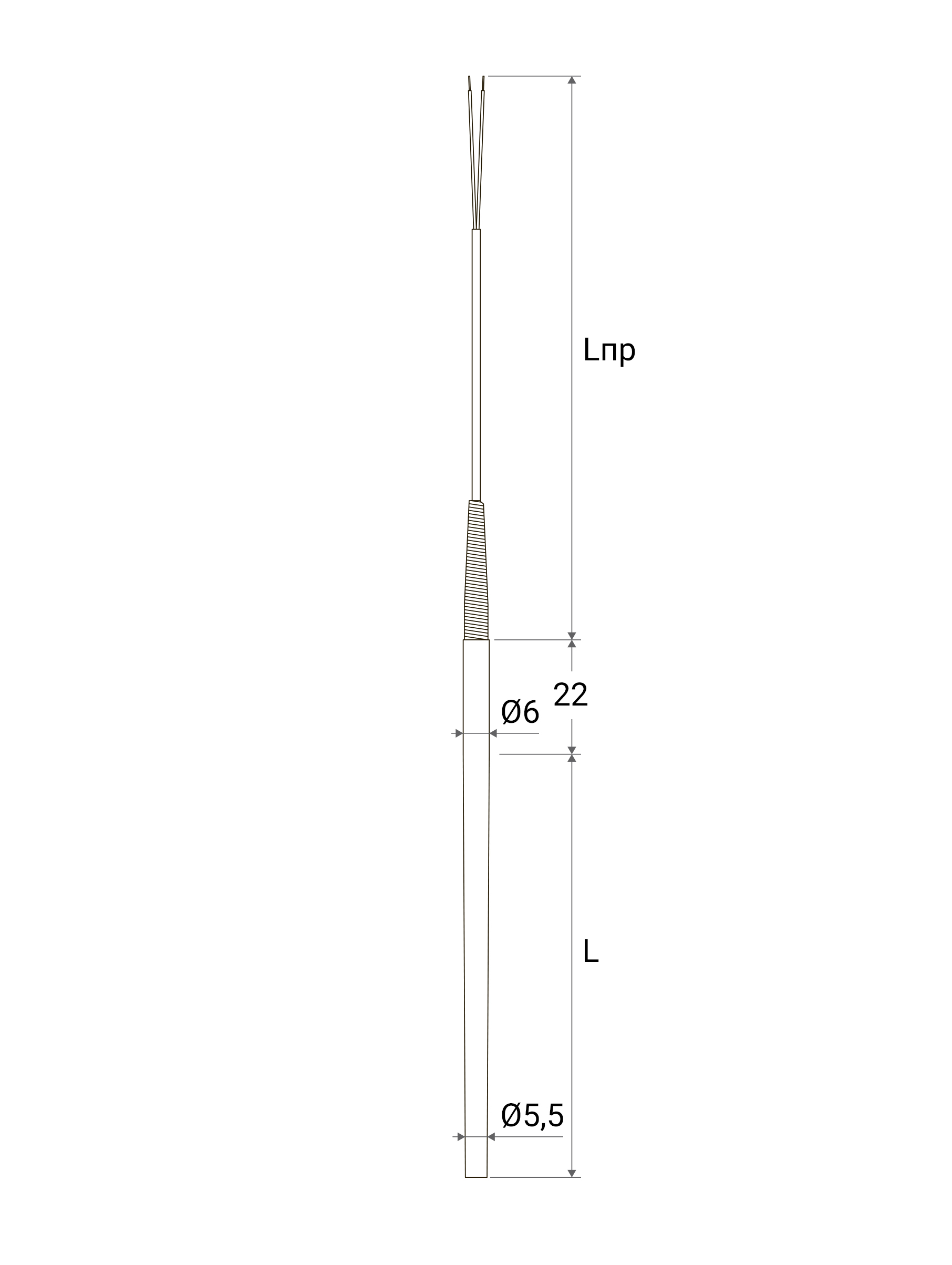

Dimensions
| Length of the immersion part, L, mm | 60, 80, 100 |
| Length of the remote part, mm | 22 |
| Diameter of the immersion part, mm | Ø6 to Ø5.5 transition |
NOTE! The price of the probe consists the price of the probe itself and the price of the cable.
