08a Model

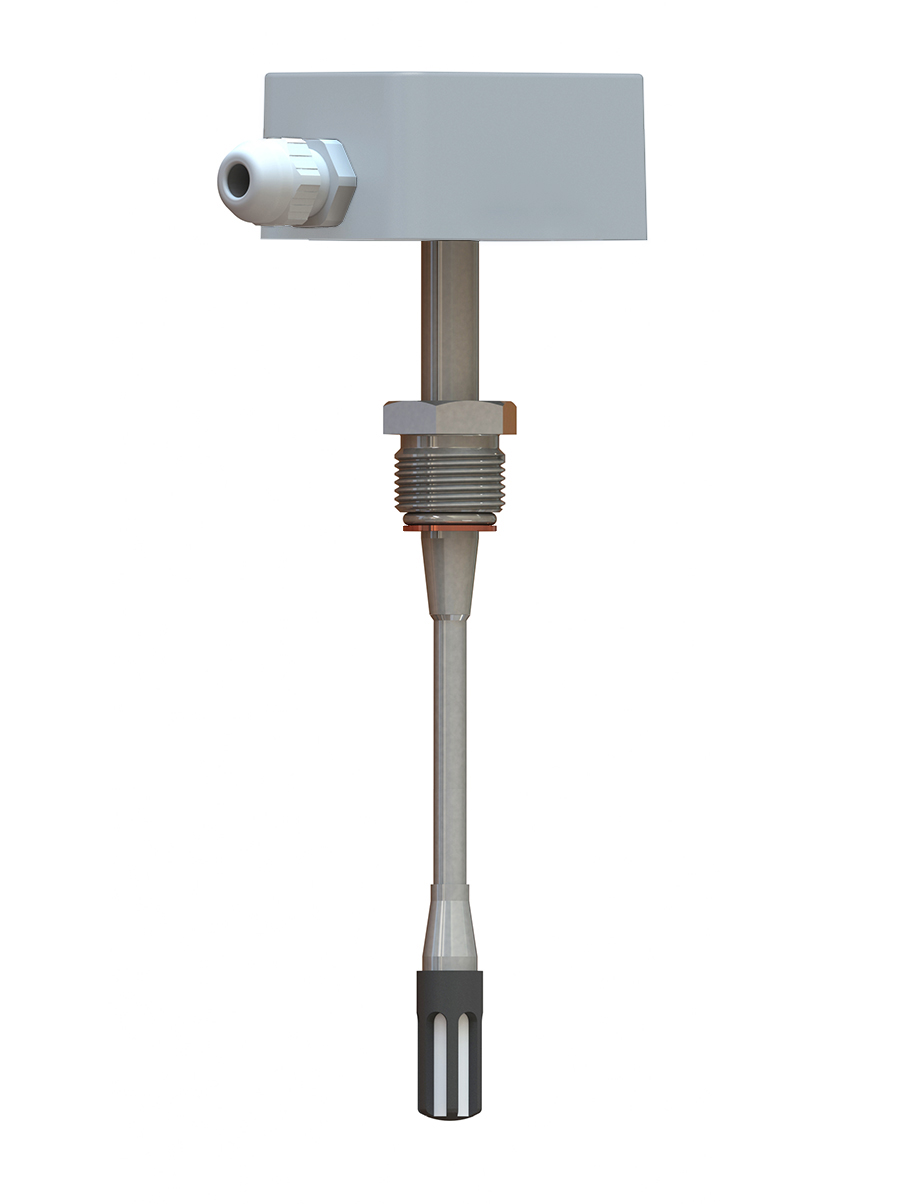

Z-Case humidity & temperature transducer uses 4-20 mA (0-10 V) analogue interface to transfer data. The probe connects to 4-20 mA (0-10 V) line by 2, 3 or 4 wired scheme with a outside power supply depending on a model. It's recommended to use single or dual Shielded Twisted Pair (STP) cable for lines depending on number of channels for measuring. It connects to 4-20 mA (0-10 V) line using screw terminals being inside the industrial enclosure.
The transducer consists a free hex fitting М20х1,5 / G1/2 and a copper washer.
The external humidity and temperature SHT31 sensor is remoted out of the transducer to avoid heat impact coming from the board.
Technical specifications of transducer
| Number of channels | 1, 2 |
| Available channel configuration | External humidity sensor External humidity and temperature sensor |
| Output signal | Analague, 4-20 mA or 2 х 4-20 mA / 0-10 V or 2 х 0-10 V |
| Mounting | Using screws |
| Operating Temperature, °С | -30…60 |
Technical specifications of external humidity and tenperature sensor
| Sensor Curve | SHT31 |
| Process temperature range, °С | -20…120 |
| Process humidity range, % | 0...100 |
| Sheath material | Steel 321, polyamide |
| Process connection size | М20 х 1,5 or G1/2 |
| Length of the immersion part, mm | 100, 120, 160, 200, 250 |
| Length of the remote part, mm | 40 |
| Diameter of the immersion part, mm | Ø6 to Ø12 transition |

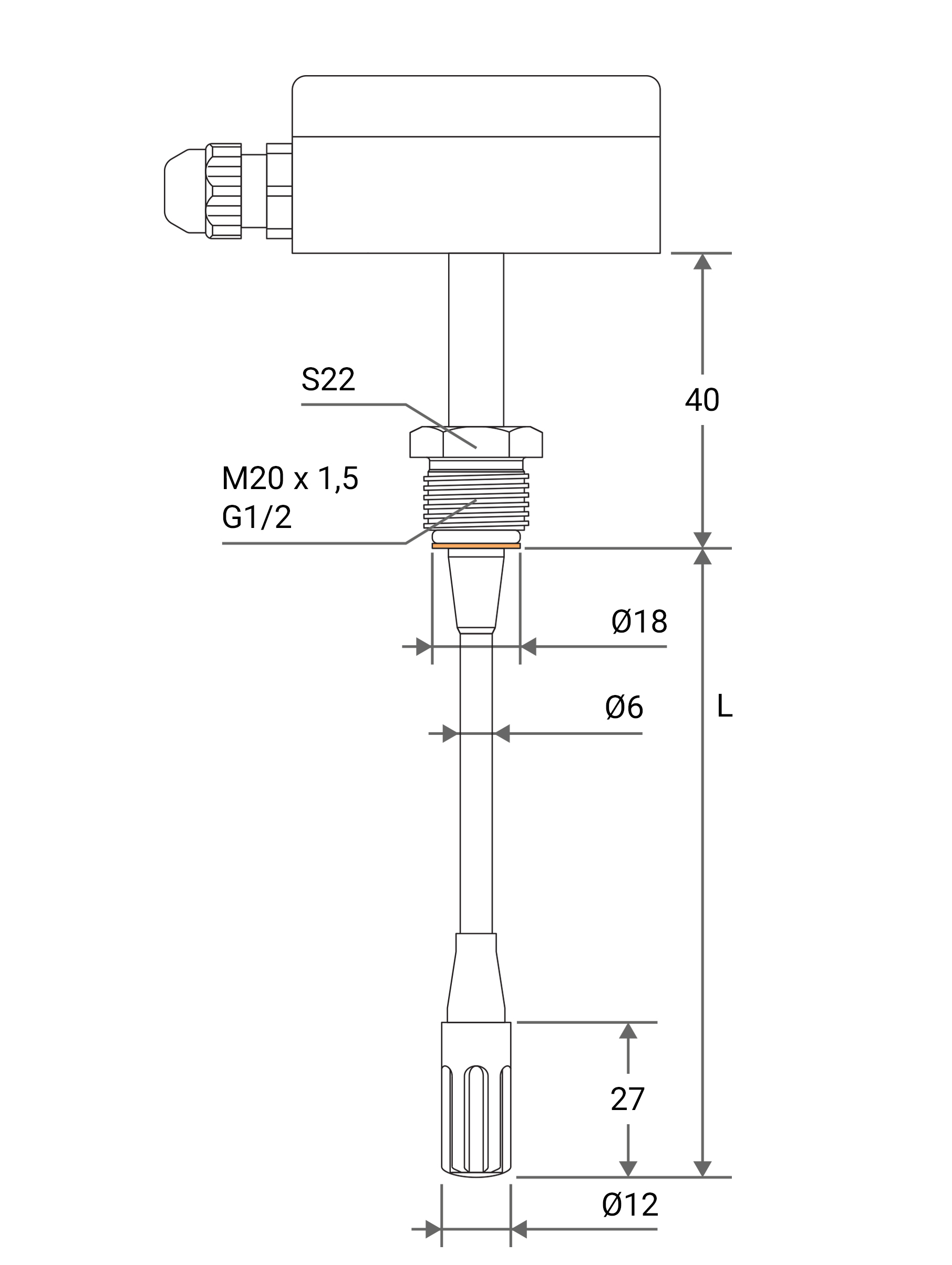

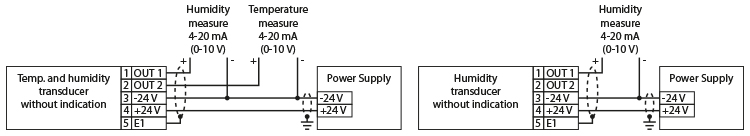

Wiring diagram
