3-58 Model

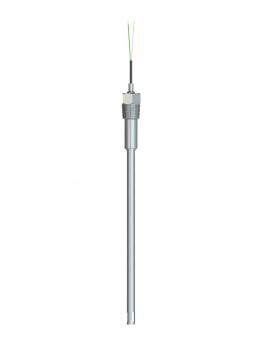

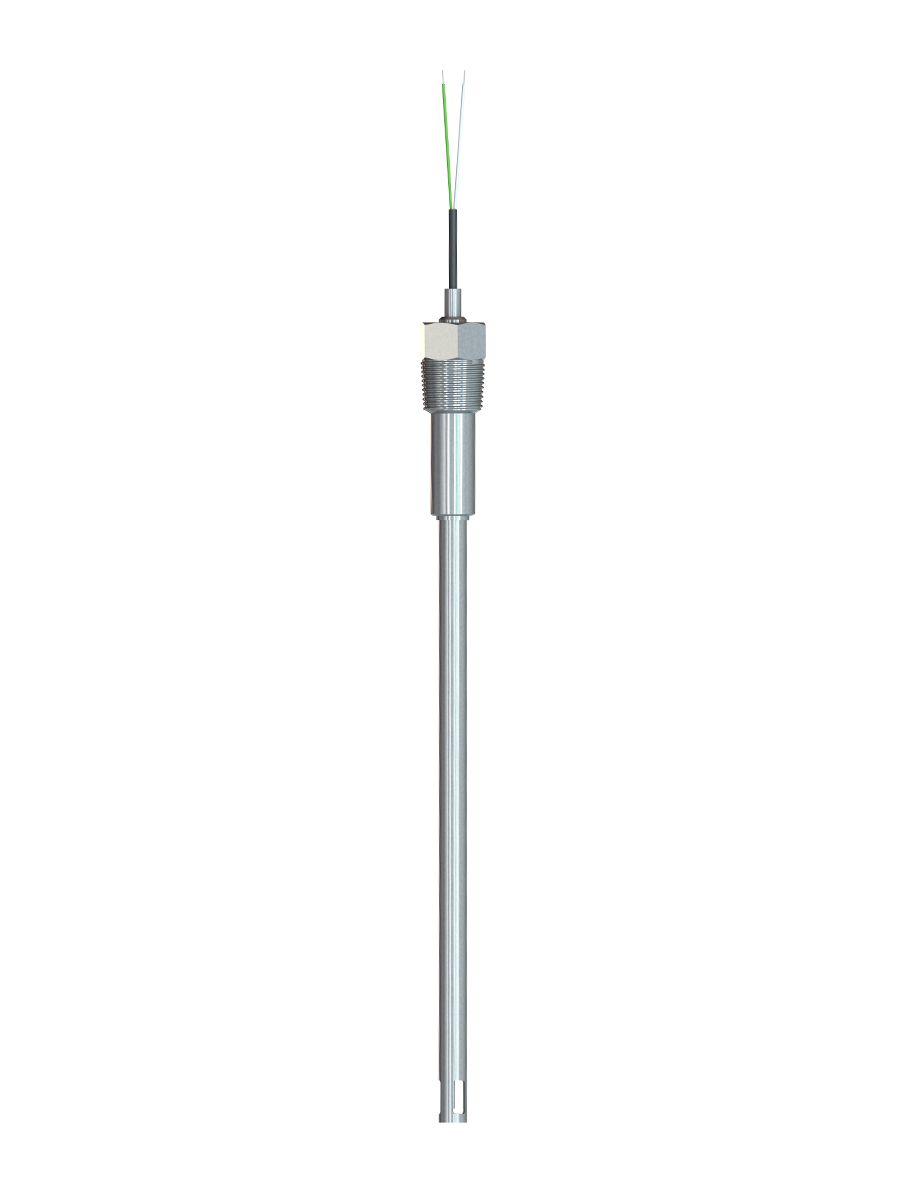

The temperature probe is designed to measure temperature of space between wheels on gas pumping aggregates. The thermocouple is made of MI cable of 1.5...3.0 mm diameter.
Technical specifications
| Type and Nominal Resistance | Type К |
| Accuracy | 1, 2 |
| Junction type of thermocouples | Ungrounded |
| Process connection size | Free hex fitting K1/2" |
| MI cable | Inconel 600 |
| Sheath material | AISI 321 |
| Pins | КК (polyamide insulation, 0,75 mm² section), L wire = 150 mm |
| Process temperature range, °С | -40...600 |
| Thermal inertia, sec | 0,3 (1.5 mm), 2 (2.0 mm), 3 (3.0 mm) |

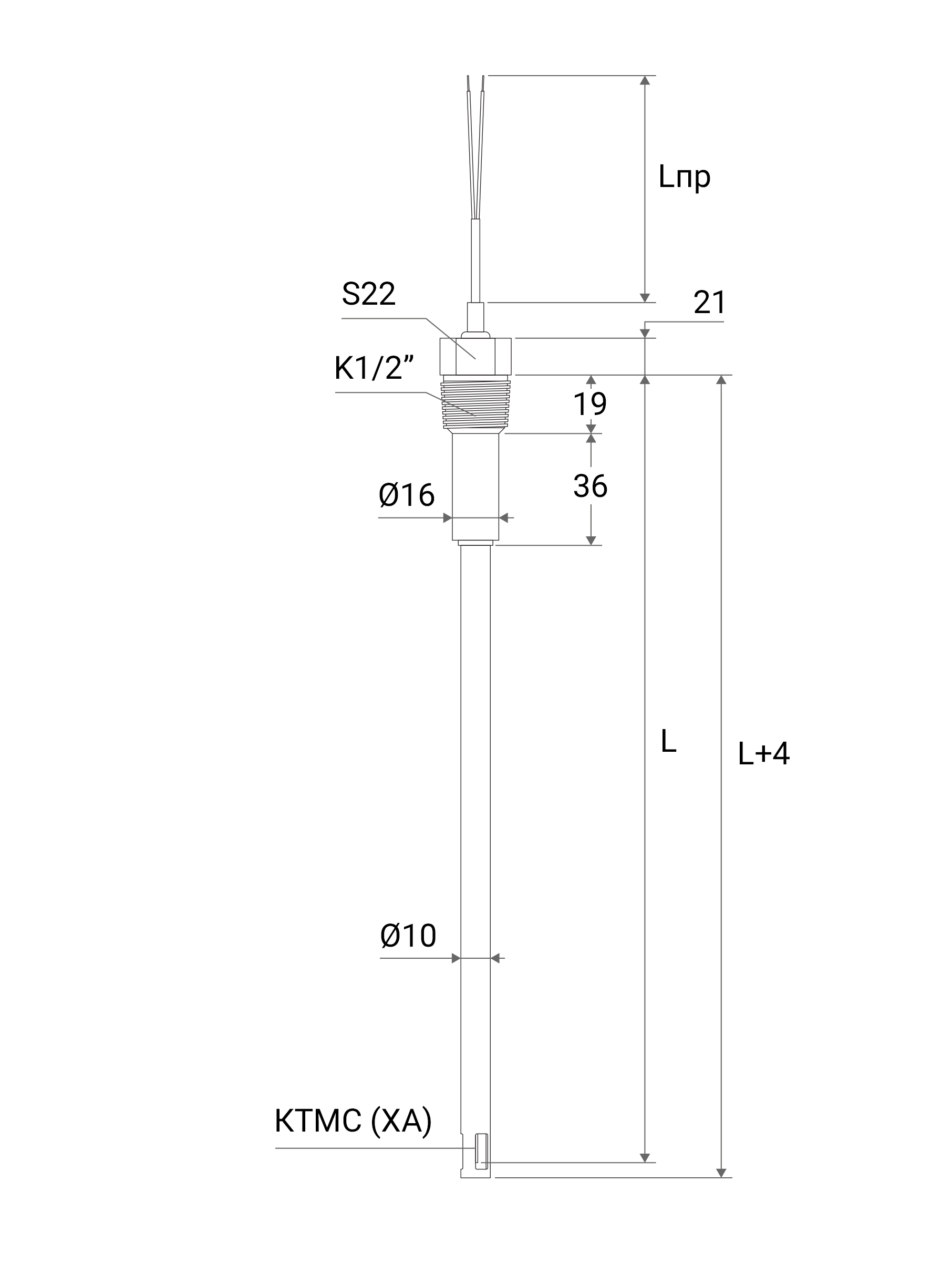

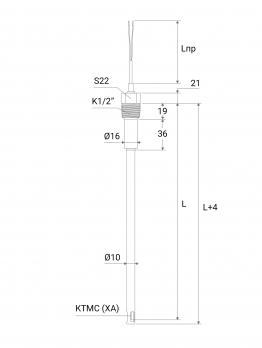

| Length of the immersion part, L / length to the rest, mm | 255, 260, 275, 280, 320, 420, 430 |
| Rest diameter, mm | Ø10 |
| MI cable diameter, mm | Ø1.5, Ø2, Ø3 |
