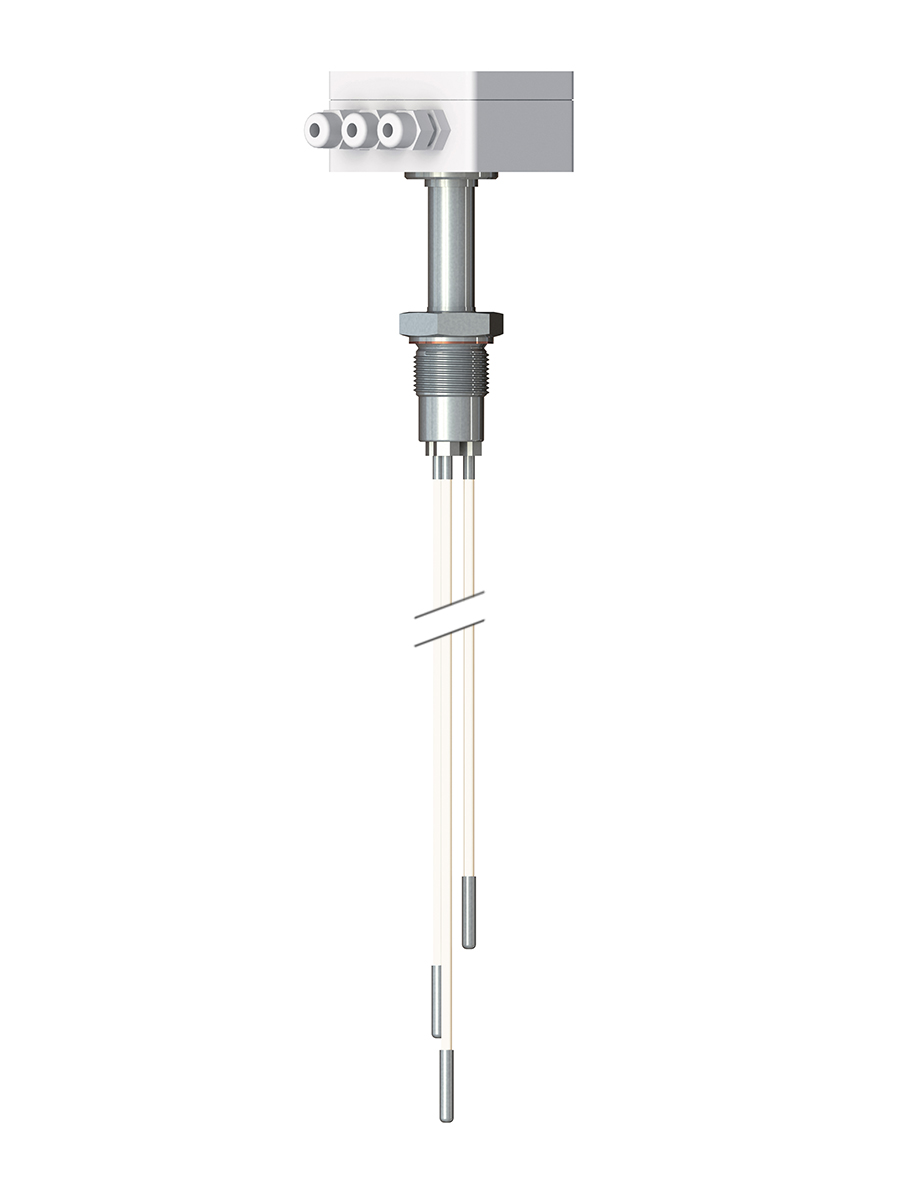

1-30n Model
A multizone temperature probe applies to control temperature of liquid in tanks at different depths. The output cable of the sensor has teflon insulation. It's chemically inert to most of liquid types. Pt100, Pt1000 or type K apply as the sensors.
Technical specifications
| Type and Nominal Resistance | Pt100, Pt1000 Type K |
| Number of sensors | 3 (maximum) |
| Accuracy | B (Pt100, Pt1000) 1, 2 (type K) |
| RTD wire connection | 3 |
| Junction type of thermocouples | Ungrounded |
| Housing material | ABS plastic |
| Process connection size | Welded hex fitting M33 х 2 with a copper washer |
| Sheath material | AISI 321 |
| Process temperature range, °С | -50...250 |
| Thermal inertia, sec | 10 |

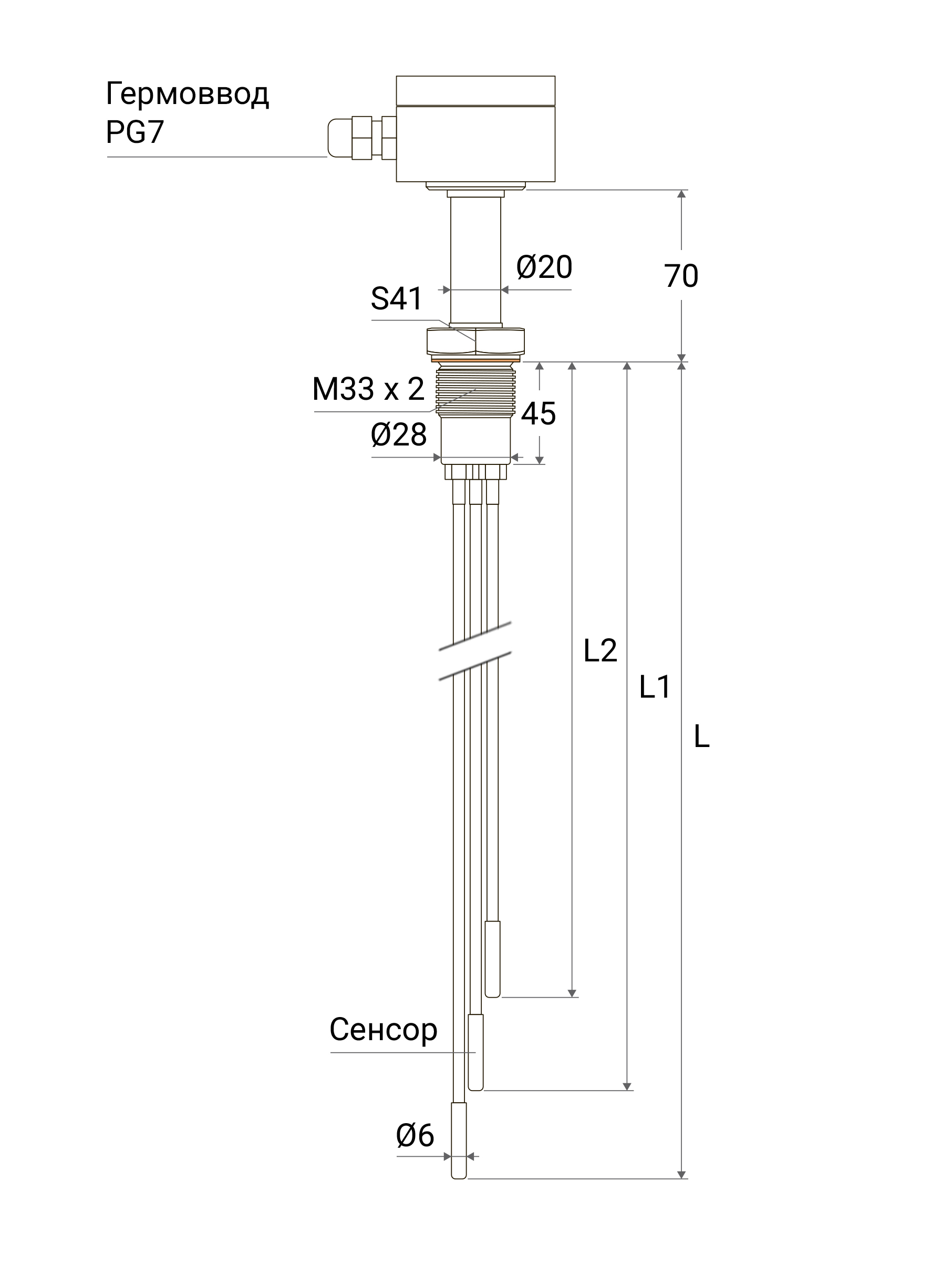

Dimensions
| Length of the immersion part, L, mm | Any (L1 and L2) |
| Sensor diameter, mm | 6 |
